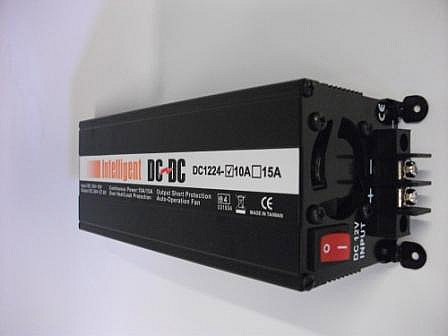

Converter DC1224
 |
|
Details
|
|
The DC-DC10 is a Isolated Step Down Converter.
|
|
Stock Code
|
Description
|
Max Power
|
I/P & O/P Voltage(DC)*
|
Output Current
|
|
918.000.09
|
DC1224
|
360W
|
12V / 24V |
10A
|
| * Preset voltage within the range | |
| Specifications | |
| DC Input Voltage Range | 12V Nominal (10 ~ 15)VDC |
| Output Voltage | 24V Nominal |
| Output Voltage Adjust Range | (24 ~ 27.6)VDC |
| Output Current | 10A Continuous |
| Output Power | 240Watts |
| Standby Input Current | < 80mA |
| Efficiency | >80% |
| Low Battery Pre-Alarm | < 10.5 ± 0.5V |
| Low Battery Shut Down & Alarm | < 9.5V ± 0.5V |
| Thermal Protect | 60° ± 5°C |
| Battery Polarity Protection | Fuse |
| Output Overload Protection | Microcontroller |
| Cooling Methods | Auto-Operation Fan |
| Dimensions | 180 x 73 x 73 (mm) |
| Weight | 0.75kg |
|
Notes
|
|
Input/output voltages to be customer specified for factory adjustment. Most models are not customer adjustable.
|
| Standard units are power converter designs NOT SUITABLE for battery charging |
| Please phone customer services for DC - DC converters with other voltage and current ratings. |
